产品详情

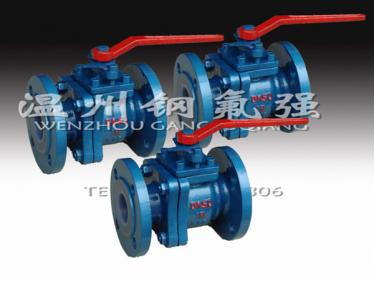

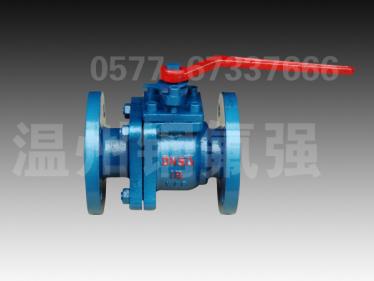

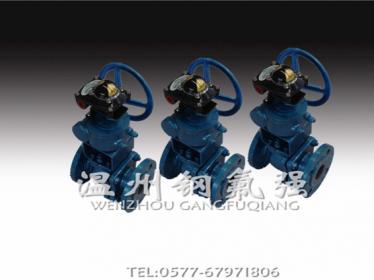

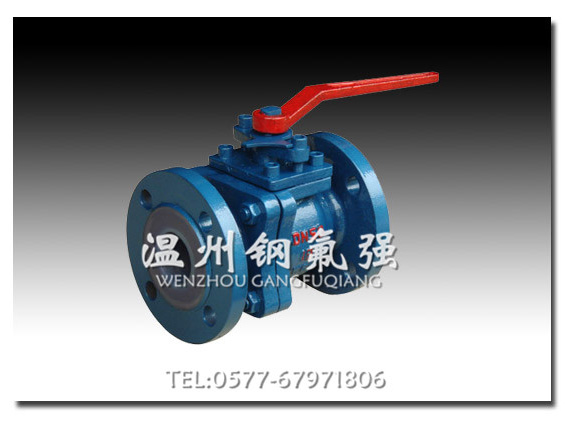

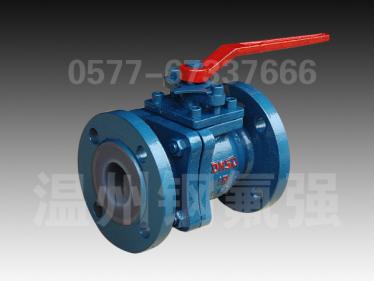

Q41F46-6型衬四氟球阀
产品资料
Q41S型球阀（直通二段式） Q341S型球阀（直通二段式）
型号 | 工作温度 |
Q41F46 Q341F46 Q641F46 Q941F46 | ≤150℃ |
Q41F3 Q341F3 Q641F3 Q941F3 | ≤120℃ |
Q41F2 Q341F2 Q641F2 Q941F2 | ≤120℃ |
Q41F Q341F Q641F Q941F | ≤100℃ |
Q41GXPO Q341GXPO Q641GXPO Q941GXPO | ≤110℃ |
Q41U Q341U Q641U Q941U | ≤100℃ |
主要连接尺寸及重量
公称通径 | 标准值 | 参考值 | ||||||||||||||
DN mm | L | D | D1 | D2 | b | f | z-φd | H1 | H2 | H3 | H4 | L1 | D0 | D3 | Wkg | |
PN1.0/PN1.6(MPa) | ||||||||||||||||
15 | 115 | 95 | 65 | 45 | 12/14 | 2 | 4-φ14 | 98 | 150 | 2.6 | ||||||
20 | 145 | 105 | 75 | 55 | 14/16 | 2 | 4-φ14 | 100 | 150 | 3.2 | ||||||
25 | 160 | 115 | 85 | 65 | 14/16 | 2 | 4-φ14 | 102 | 150 | 4.3 | ||||||
32 | 165 | 135/140 | 100 | 76 | 16/18 | 2 | 4-φ18 | 127 | 200 | 5.5 | ||||||
40 | 180 | 145/150 | 110 | 84 | 16/18 | 3 | 4-φ18 | 130 | 200 | 7 | ||||||
50 | 200 | 160/165 | 125 | 99 | 16/20 | 3 | 4-φ18 | 146 | 235 | 9.8 | ||||||
65 | 220 | 180/185 | 145 | 118 | 18/20 | 3 | 4-φ18 | 165 | 300 | 16 | ||||||
80 | 250 | 195/220 | 160 | 132 | 18/20 | 3 | 4-φ18 /8-φ18 | 188 | 220 | 360 | 150 | 20 | ||||
100 | 280 | 215/220 | 180 | 155 | 20/22 | 3 | 8-φ18 | 220 | 240 | 260 | 450 | 400 | 300 | 220 | 34 | |
125 | 320 | 245/250 | 210 | 184 | 22/22 | 3 | 8-φ18 | 253 | 270 | 350 | 520 | 400 | 300 | 220 | 57 | |
150 | 360 | 280/285 | 240 | 210 | 22/24 | 3 | 8-φ23 | 290 | 298 | 350 | 520 | 400 | 300 | 220 | 92 | |
200 | 400 | 335/340 | 295 | 265 | 22/24 | 3 | 8-φ23 /12-φ23 | 345 | 355 | 425 | 620 | 450 | 300 | 360 | 160 | |
250 | 550 | 390/405 | 350 | 320 | 24 | 3 | 12-φ23 | 435 | 485 | 705 | 300 | 360 | 220 | |||
主要连接尺寸及重量
公称通径 | 标准值 | 参考值 | |||||||||||||
DN Mm | L | D | D1 | D2 | b | f | z-φd | H1 | H2 | H3 | H4 | L1 | D0 | D3 | W kg |
PN2.5(MPa) | |||||||||||||||
15 | 115 | 95 | 65 | 46 | 14 | 2 | 4-φ14 | 98 | 150 | 2.9 | |||||
20 | 145 | 105 | 75 | 56 | 16 | 3 | 4-φ14 | 98 | 150 | 3.6 | |||||
25 | 160 | 115 | 85 | 65 | 16 | 3 | 4-φ14 | 98 | 150 | 4.7 | |||||
32 | 165 | 140 | 100 | 75 | 18 | 3 | 4-φ18 | 116 | 160 | 5.9 | |||||
40 | 180 | 150 | 110 | 84 | 18 | 3 | 4-φ18 | 118 | 200 | 7.3 | |||||
50 | 200 | 165 | 125 | 99 | 20 | 3 | 4-φ18 | 142 | 250 | 10.3 | |||||
65 | 220 | 185 | 145 | 118 | 22 | 3 | 8-φ18 | 164 | 300 | 17 | |||||
80 | 250 | 200 | 160 | 132 | 24 | 3 | 8-φ18 | 188 | 350 | 26 | |||||
100 | 280 | 235 | 190 | 156 | 24 | 3 | 8-φ22 | 198 | 218 | 260 | 450 | 400 | 250 | 220 | 39 |
125 | 320 | 270 | 220 | 184 | 26 | 3 | 8-φ26 | 210 | 290 | 350 | 520 | 500 | 250 | 220 | 62 |
150 | 360 | 300 | 250 | 211 | 28 | 3 | 8-φ26 | 290 | 350 | 520 | 300 | 220 | 95 | ||
QF41S型放料阀
型号 | 工作温度 |
QF41F46 QF341F46 | ≤150℃ |
QF641F46 QF941F46 | |
QF41F3 QF341F3 | ≤120℃ |
QF641F3 QF941F3 | |
QF41F2 QF341F2 | ≤120℃ |
QF641F2 QF941F2 | |
QF41GXPP QF341GXPP | ≤100℃ |
QF641GXPP QF941GXPP | |
QF41GXPO QF341GXPO | ≤110℃ |
QF641GXPO QF941GXPO | |
QF41U QF341U | ≤100℃ |
QF641U QF941U |
主要连接尺寸及重量
公称通径 | 标准值 | 参考值 | ||||||||
DN mm | L | D | D1 | D2 | f | b | z-φd | L1 | H | W kg |
PN1.0(MPa) | ||||||||||
40/65 | 165 | 145/180 | 110/145 | 85/118 | 4/4 | 16/20 | 4-φ18/4-M16 | 200 | 130 | 8.3 |
50/80 | 178 | 160/195 | 125/160 | 102/132 | 4/4 | 17/24 | 4-φ18/4-M16 | 235 | 145 | 9.2 |
80/125 | 203 | 195/245 | 160/210 | 135/185 | 4/4 | 28/22 | 4-φ18/8-M16 | 400 | 184 | 19.5 |
